Concept of vacuum rubber filtration conveyor belt:

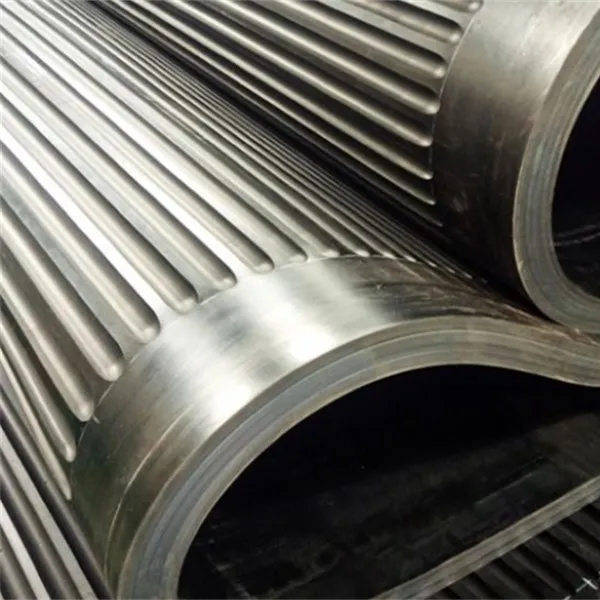

Vacuum rubber filtration conveyor belt, also known as vacuum belt, is a key component of vacuum belt washing machine and DU horizontal belt vacuum filter with a width of up to 5 meters. The surface of the vacuum rubber filtration conveyor belt is a row of transverse grooves, and there are one or more rows of drainage holes in the grooves, and the drainage hole section can be made of pure glue; The skeleton layer of the belt body is made of high-strength polyester canvas or ribbon canvas; The upper and lower covering rubber of the filter belt can adopt different formulas according to the working conditions to meet different needs such as acid and alkali resistance, heat resistance, oil resistance, and cold resistance. The forming and vulcanization of the tape adopts a one-time integral compounding process to ensure the flatness of the tape body and the stability of performance.

Product types of vacuum rubber filtration conveyor belt:
Nylon conveyor belt, heat-resistant conveyor belt, fire-resistant conveyor belt, flame-retardant conveyor belt, concave herringbone conveyor belt, convex herringbone conveyor belt, round pit conveyor belt, high-angle sidewall conveyor belt, wire rope conveyor belt, wire rope traction conveyor belt, vacuum filtration conveyor belt, iron remover special belt, conveyor belt accessories.

Common types of vacuum rubber filtration conveyor belts:
1. Nylon conveyor belt: with nylon canvas as the core, it has the advantages of high strength, good elasticity, impact resistance, etc., suitable for mines, ports, metallurgy, coal, concrete batching plants and other fields, can transport all kinds of lumpy, granular, powdery and other materials over long distances;

2. Heat-resistant conveyor belt: made of multi-layer rubber-cotton canvas (polyester cotton cloth) or polyester canvas, covered with high-temperature or heat-resistant rubber, bonded together by high-temperature vulcanization, can transport hot coke, cement, slag and other materials below 175 °C, often used in metallurgy, construction, chemical and other industries, such as transporting high-temperature sintered ore in steel plants, etc.;

3. Flame retardant conveyor belt: has the characteristics of preventing or delaying the spread of flame, and is widely used in coal mines, mines and other places prone to fire hazards to ensure safety during transportation and prevent fires caused by sparks caused by conveyor belt friction;

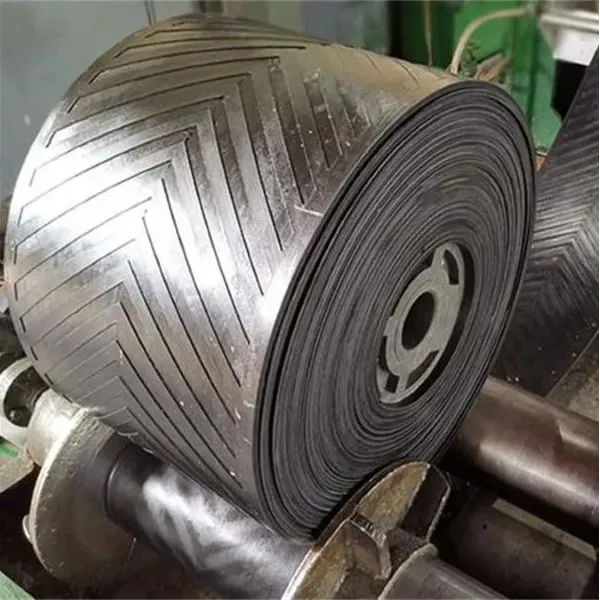

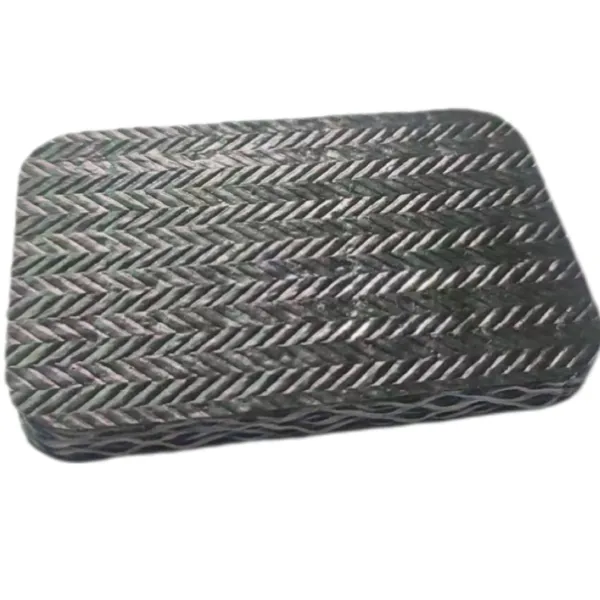

4. Concave herringbone conveyor belt and convex herringbone conveyor belt: both belong to the pattern conveyor belt, the herringbone pattern can increase the friction between the conveyor belt and the material, prevent the material from sliding, and is suitable for material conveying scenarios with a certain inclination angle, such as mines, ports and other sites, used to transport coal, ore, etc.

Vacuum rubber filtration conveyor belt damage and wear issues:
Vacuum rubber filtration conveyor belt If the rubber layer and core layer are partially damaged or worn, liquids and foreign pollutants will be immersed in the deep layer of the tape, which will expand the damage part of the tape and greatly shorten the service life of the conveyor belt. This will have a great impact on the company's production schedule, and it is expensive to replace the conveyor belt with a new one, so choosing our Hengyi vacuum rubber filtration conveyor belt can reduce wear and reduce replacement costs.

Vacuum rubber filtration conveyor belt process repair process:
The first step is to polish the surface of the repaired part to expose the fresh rubber substrate, and use a special cleaning agent to clean or wipe the rubber powder clean. The second step is to plug the leakage hole of the conveyor belt with PVC pipes or other appliances of appropriate diameter and size in advance; The third step is to configure and brush the special primer of liquid wear-resistant rubber coating in proportion, and let it dry for about 30 minutes (do not work in rainy days or when the humidity is high); Step 4: Weigh the special liquid wear-resistant rubber coating of the conveyor belt with an electronic scale strictly according to the given ratio, mix evenly, and brush or pour on the wear part of the conveyor belt. The fifth step is to cure at room temperature 25°C for 24 hours, and then turn on the machine after the material is completely cured (if the temperature is low, heating or extending the curing time should be used to promote curing).

The vacuum rubber filtration conveyor belt produced by Liaoning Hengyi Rubber Belt Manufacturing Co., Ltd. has the advantages of long service life, large conveying angle, small footprint, and wide range of application. If you want to know more, please feel free to contact us, we look forward to your message!
