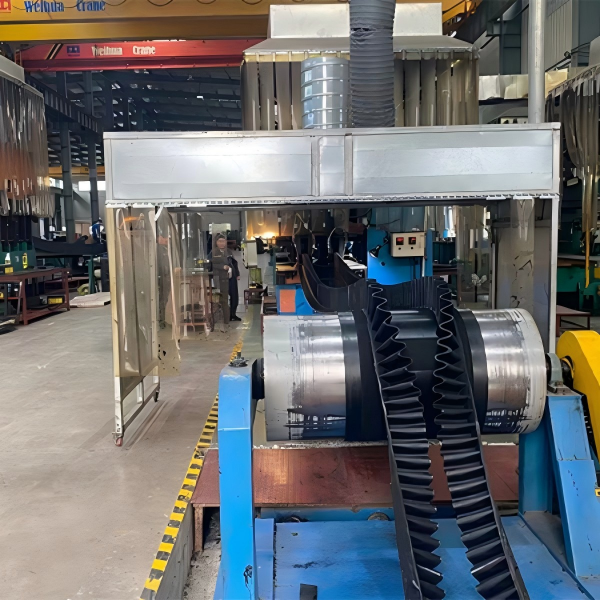

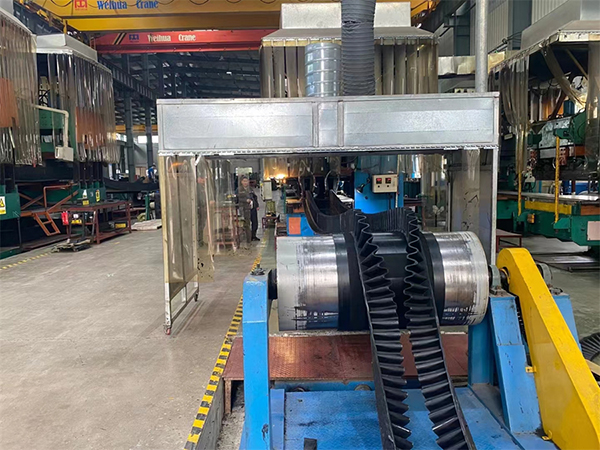

Sidewall Cleated Belt
1. Ourcorrugated sidewall conveyor belt is built to transport heavy and bulk materials, thus they are perfectly suited for high-load and heavy-duty material handling applications.
2. Thanks to sidewall and cleat features, our sidewall conveyor belts are able to facilitate very steep incline or even vertical transport, thus greatly saving on floor space.
3. We provide a range of customization options allowing the customers to change the belt width, cleat height, and the type of material in order to meet their specific requirements.
- Hengyi
- Shenyang, Liaoning
- Determined by the order quantity
- 12 million ㎡ /year
- Information
Product Advantages:
Stable and Reliable Conveying Performance:
Sidewalls and cleats protect materials from falling off during the transport, thus the safety of the handling goods is guaranteed. The result is less material spillage and process interruption, thus it is possible to make the material conveying system stable and efficient.
Durability and Adaptability to Various Work Environments:
Made of wear-resistant materials, our corrugated sidewall belt keep their performance for several years even when continuously used in material handling. They can be applied to extremely abrasive situations such as mining, coal, chemical, etc.
Low Maintenance Costs:
Due to the use of premium materials and the meticulous manufacturing process, our sidewall conveyor belts can provide a long service life, thus they require less frequent maintenance, and the rate of parts failure goes down. This helps to lower the overall operational expenses of the customer.
Product Specifications and Technical Parameters:
| Parameter | Description |
| Belt Width | 300mm ~ 1500mm |
| Maximum Incline Angle | 0° ~ 90° |
| Material | Wear-resistant rubber, PVC, PU, steel cord reinforced materials, etc. |
| Maximum Load | Customizable, typically up to 1000kg or more |
| Cleat Height | 30mm ~ 250mm (Customizable) |
| Operating Temperature | -20°C ~ +80°C (Custom materials available for high/low temperatures) |
| Fire Resistance | Complies with IDIN standards, offering excellent fire resistance |
Applicable Industries & Applications:
Mining:
Mainly for transporting bulk materials like ore and coal, we have used sidewall pulley belts for balling bulk material handled by the machinery in the mines and quarries. It features steep ramp climbing and narrow working space.
Construction Industry:
They are used in the construction industry to carry out vertical or inclined transport of concrete, sand, gravel, and construction waste. Besides the obvious functional aspects, these belts are also space-saving and thus can bring higher transport efficiency.
Chemical Industry:
Thanks to the excellent corrosion resistance property of our sidewall belt, they can be used for transporting fertilizers, plastics, chemicals, and other materials even in harsh environments.
Customization Services:
Personalized Specifications:
We have a great number of customization options available to the customers; these include the width of the belt, the height of the sidewall, the structure of the cleat, and material choices. It is our pleasure to provide the customers with a conveyor belt solution that is environmentally friendly and perfectly matches the nature of the material handled.
Custom Material Selection:
In addition to the standard materials such as rubber, PVC, and PU, we can also provide customized solutions like heat-resistant, corrosion-resistant, and anti-static materials.
Personalized Cleat Designs:
We provide different design cleat patterns, namely, standard, V-shaped, and U-shaped cleats, that help to solve the problem of material sliding and spillage, thus ensuring smooth transport. The choice depends on the characteristics of the material.
Logistics & Shipping:
Minimum Order Quantity:
The minimum order quantity is negotiable according to the product type and the requirements of the customers, thus we are open to orders of any size.
Shipping Methods:
We provide several options for shipping, such as sea freight, air freight, and land transport, so that the customers can receive the goods in a timely and safely no matter where in the world they are.
Product Quality Testing:
We are equipped with the most advanced testing facilities such as tensile testing machines, aging chambers, high-resistance testing instruments, etc., so that we can test each conveyor belt thoroughly from different angles. Besides that, we check every product component to guarantee the compliance of our products with the international standards.
FAQ:
What kinds of working environments is ribbed conveyor belt best suited for?
Sidewall conveyor belts are really good for certain industries, like mining and construction, because they can handle heavy loads and steep slopes. They work well even in tough conditions, making them a great choice for companies that need to move materials around.
Can sidewall conveyor belts be customized?
We can definitely work with you to create a customized solution that fits your requirements.
What maintenance is required for sidewall conveyor belts?
You should check your stuff regularly, especially the parts that get worn out like cleats and the sides. It's a good idea to do a thorough check every few months.
Company Advantages and Introduction:
Liaoning Hengyi Rubber Machine Belt Manufacturing Co., Ltd. started its journey in 2018, spreading across 20,000 square meters, with 18,000 square meters of building space. The company has a team of 150 people, including 25 technical experts and 4 senior professionals. With the latest technology and management, it quickly became a major player in the rubber conveyor belt industry.
In 2021, the company got certified with ISO9000, ISO9001, ISO14001, and OHSAS18001, along with the AAA Credit Enterprise certification. It has top-notch testing equipment and a thorough quality control system, making sure every conveyor belt goes through strict checks. The production lines include sidewall conveyor belt vulcanization and composite production lines, producing 12 million square meters of conveyor belts every year. The products are sent to countries like Russia and Australia, and customers trust and like them a lot.
