Chevron convex conveyor Belt
1. Herringbone conveyor belt is made of natural rubber, which has the advantages of wear resistance, scratch resistance and corrosion resistance.
2. Herringbone conveyor belt uses high-strength canvas and steel wire as the tensile skeleton, with high tensile strength and is suitable for all scenes with light and heavy loads.
3. Herringbone conveyor belt has good anti-skid properties, very low sprinkling rate when tilting and conveying, and stable performance.
- Hengyi
- Shenyang, Liaoning
- Depends on the actual situation
- 12 million ㎡ /year
- Information

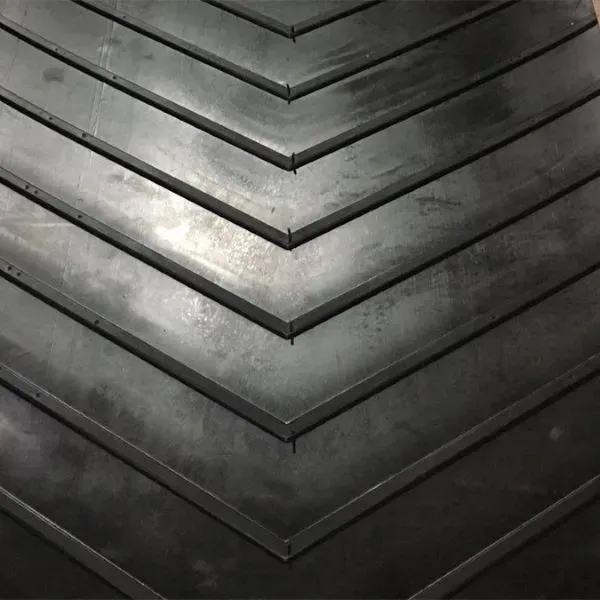

Introduction of herringbone conveyor belt:
Herringbone conveyor belt is a kind of rubber conveyor belt with a specific raised pattern on the surface, which can solve the problem of material sliding during bulk material transportation, improve the efficiency of bulk material transportation and overcome terrain limitations.
Features of herringbone conveyor belt:
1. Pattern rubber conveyor belt adopts optimized pattern design, and its non-slip performance has obvious advantages over ordinary conveyor belts.
2. Pattern rubber conveyor belt uses multi-layer composite materials and strengthens the joint process to easily extend the service life.
3. Pattern rubber conveyor belt ranges from food grade to heavy-duty type, and supports customization of parameters under special working conditions.
Replacement of pattern rubber conveyor belt:
1. Shut down and power off, and remove the old pattern rubber conveyor belt fixing device.
2. Clean up the debris of the conveyor belt roller and check whether the roller shaft is worn.
3. The new pattern rubber conveyor belt aligns the direction of the conveyor in the direction of the pattern, and is positioned flatly.
4. Connect the joints with hot vulcanization or steel buckles to make the strength up to standard.
5. Adjust the tension to the standard range, check the deviation during the trial operation, and put it into production if there is no abnormality.
Use of herringbone pattern belt:
1. Mining field: herringbone pattern belt can transport bulk materials such as coal and ore. Optimizing the pattern design can reduce slippage and sprinkling, and can improve the conveying efficiency of heavy loads.
2. Port: herringbone pattern belt is used for bulk material handling at bulk terminals and parcel and small cargo transshipment at container ports. The wear-resistant surface layer can resist material impact, extend service life, and ensure the efficiency of continuous operation.
3. Agriculture: the herringbone pattern belt can transport grains at low loss, enhance the stability of inclined transportation, and reduce maintenance costs and material loss.
FAQ:
Q1: How to tell when the herringbone pattern belt needs to be replaced?
When the pattern is worn by more than 50%, the joint is cracked or partially damaged, it is recommended to replace it in time to prevent it from affecting the conveying efficiency.
Q2: Are there any requirements for the direction of the pattern when installing the herringbone pattern belt?
The tip of the pattern needs to be pointed in the direction of conveying, and reverse installation will reduce the anti-skid effect and accelerate wear.
About us:

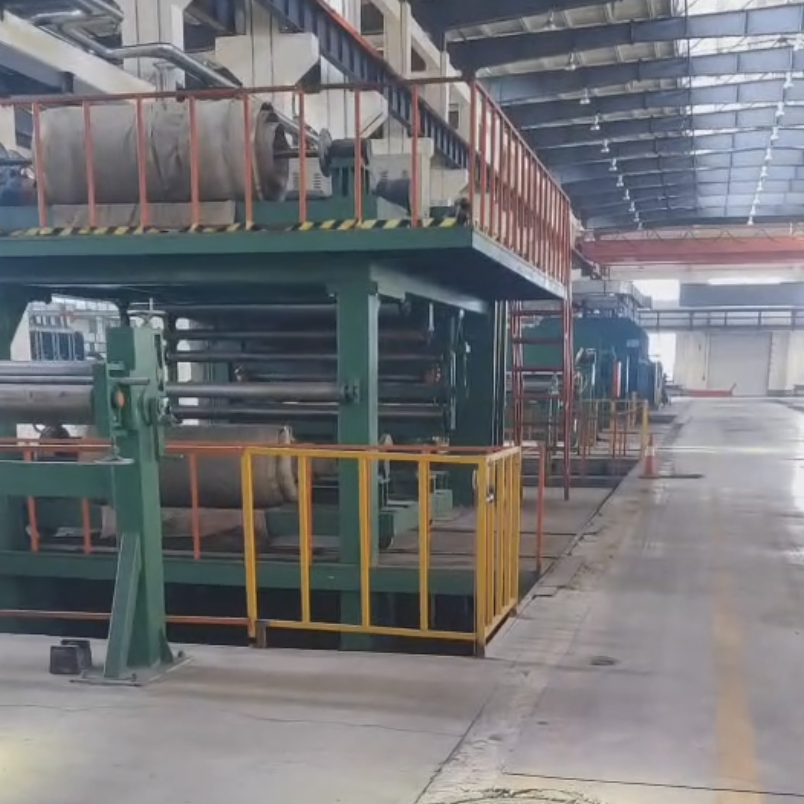

Our company passed the IS0 9000 standard certification, IS0 9001 quality management system certification, IS014001 environmental management system and OHSAS18001 occupational safety and health management system standard certification in 2021, and obtained the AAA credit enterprise certification. The company has excellent domestic testing equipment and advanced production equipment, with an annual output of 12 million square meters. If you want to purchase high-quality, long-life conveyor belts, please feel free to contact us, we will be your most reliable choice!
